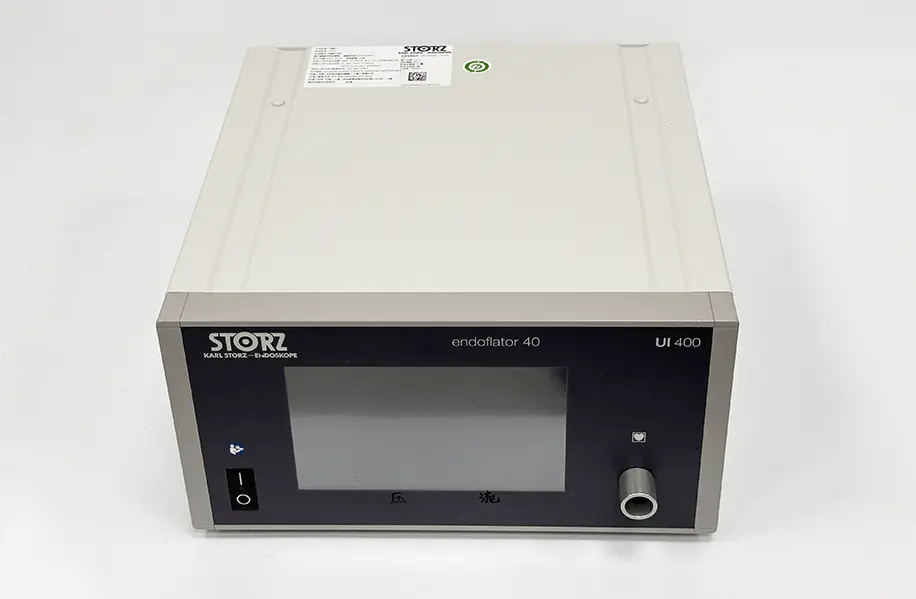

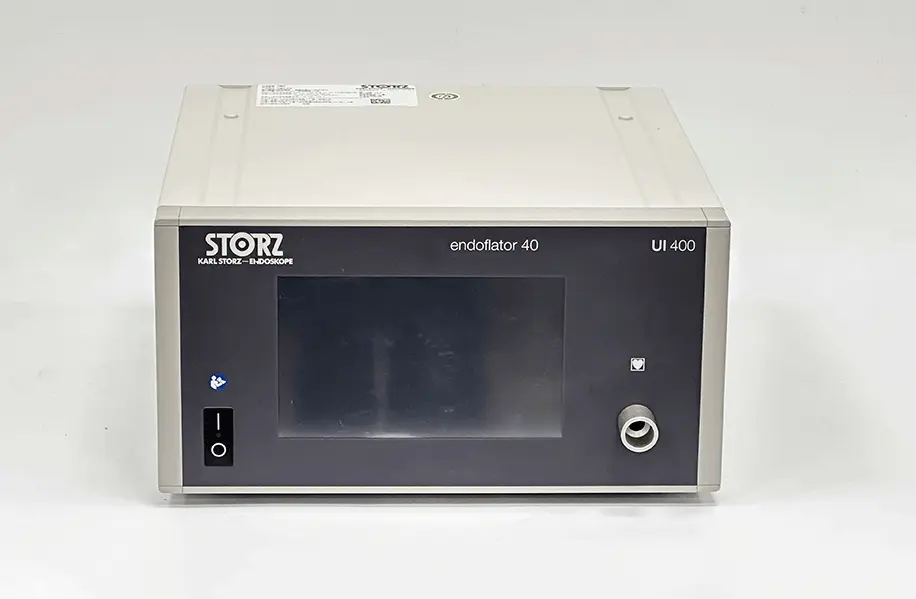

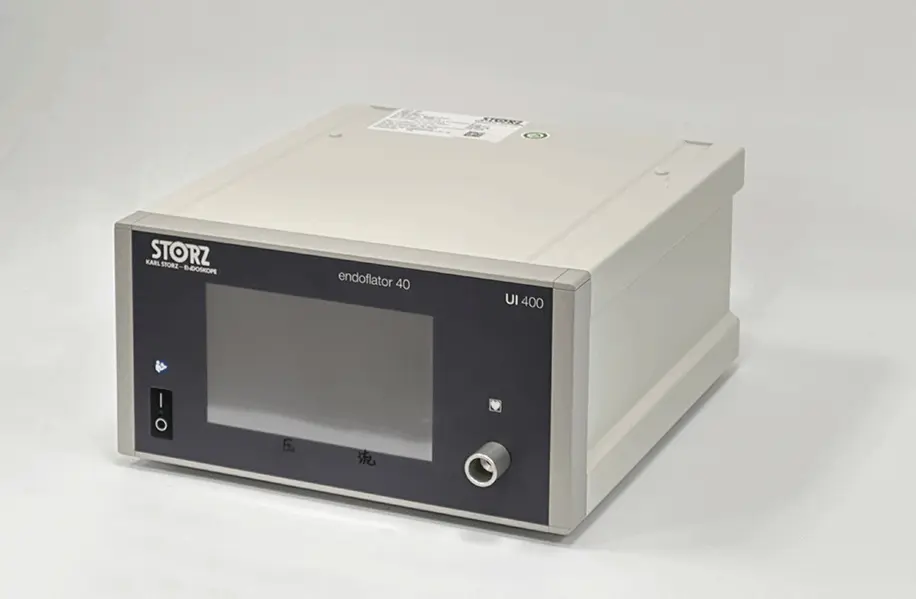

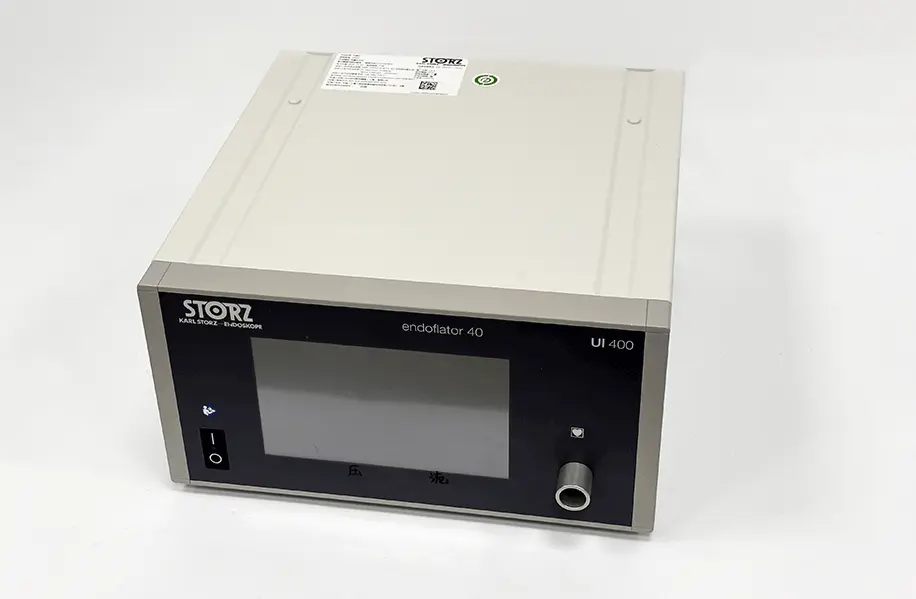

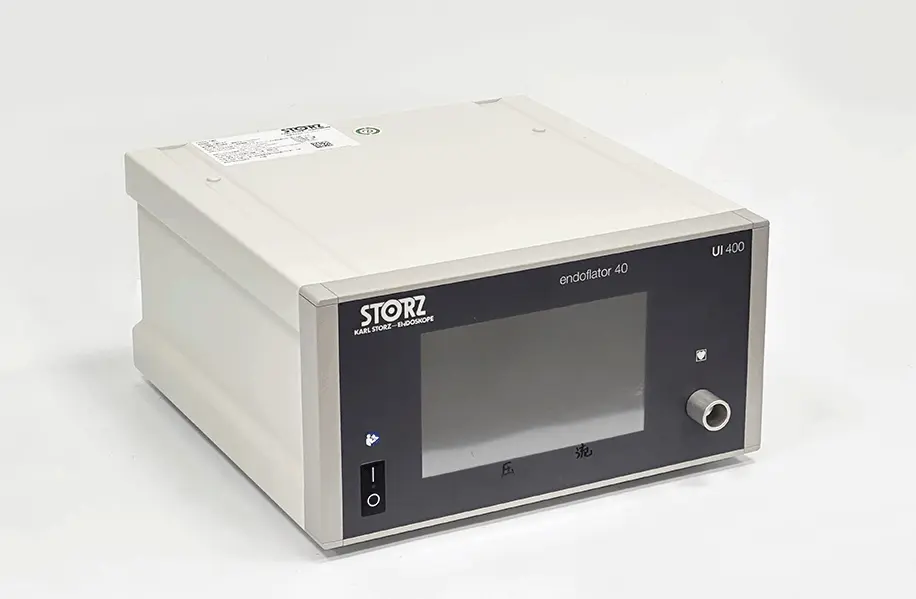

The STORZ UI400 Endoscopy CO2 Insufflator stands as an advanced tool for efficient insufflation in medical procedures. Featuring adjustable flow rates, user-friendly controls, and a compact design, it ensures accurate CO2 delivery. This enhances procedural efficiency, contributing to improved outcomes in various endoscopic interventions for healthcare practitioners.
Brand | ENDOFLATOR® |
Intracavitary pressure (mmHg) | operating mode high flow: 1…30; operating mode pediatrics: 1…15 |
Flow l/min | operating mode high flow: 1…40; operating mode pediatrics: 0.1…15 |
Hose heating | No |
Wipe disinfection | yes |
Power supply | 100 – 240 VAC |
Line frequency | 50/60 Hz |
Average power input during flow 40 l/min (input pressure 60 bar) at 240 VAC (Watt) | 160 Watt |
Average power input during flow 40 l/min (input pressure 60 bar) at 100 VAC (Watt) | 90 Watt |
Max. current consumption at 240 VAC | 1.6 D |
Max. current consumption at 100 VAC | 0.9 D |
Gas input (max. pressure) | 100 bar |
System requirements for SCB | SCB control NEO system with integrated SCB control NEO Software Release 20090001-45 or higher |
Unit communication SCB | yes |
SCB connection | 2 |
Insufflation connection | 1 |
Room temperature sensor | no (0) |
Gas connection on the back of the device | American |
Control via touch screen | yes |
Width | 305 mm |
Height | 164 mm |
Depth | 315 mm |
Weight | 7.4 kg |
Degree of safety | CF |
IP protection class | IP21 |
Electrical protection class | protection class 1 |
