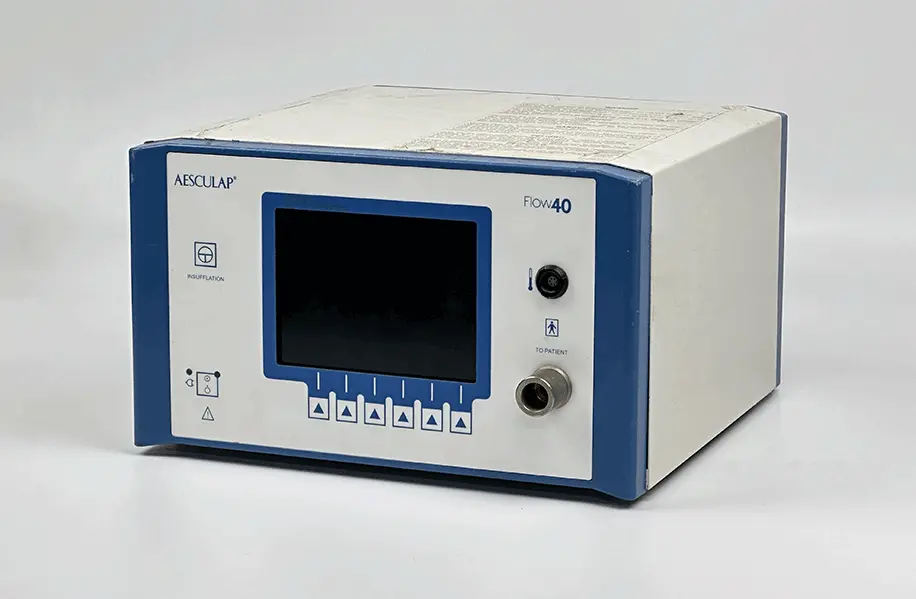

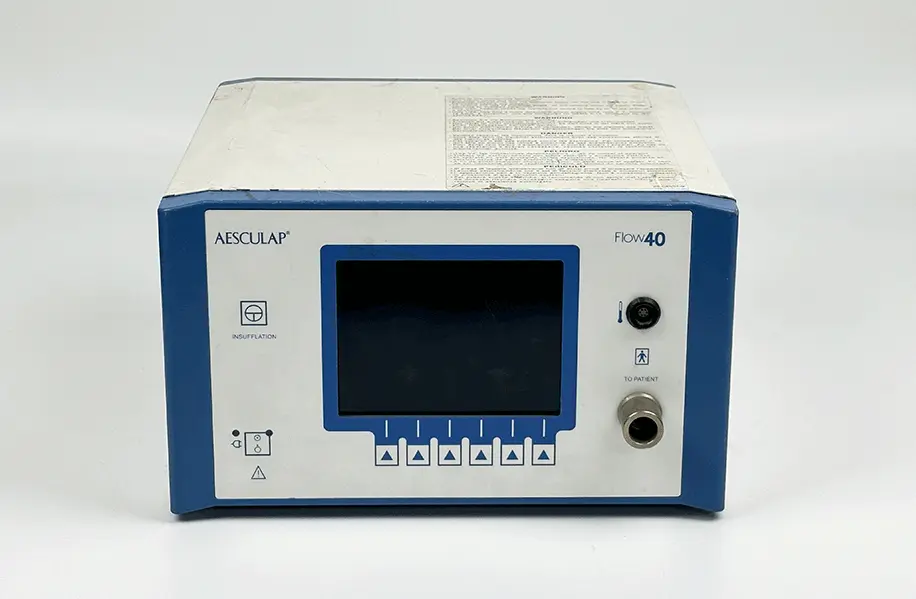

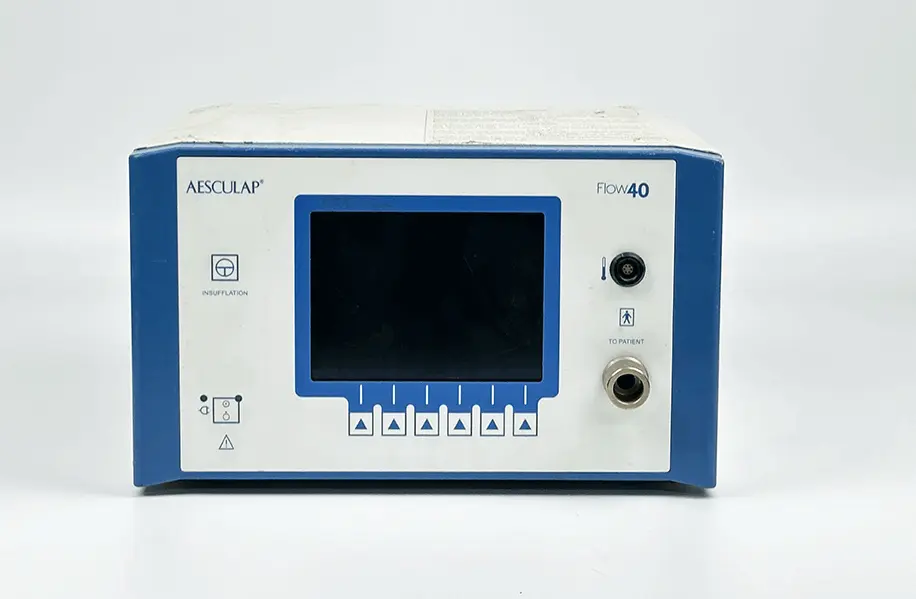

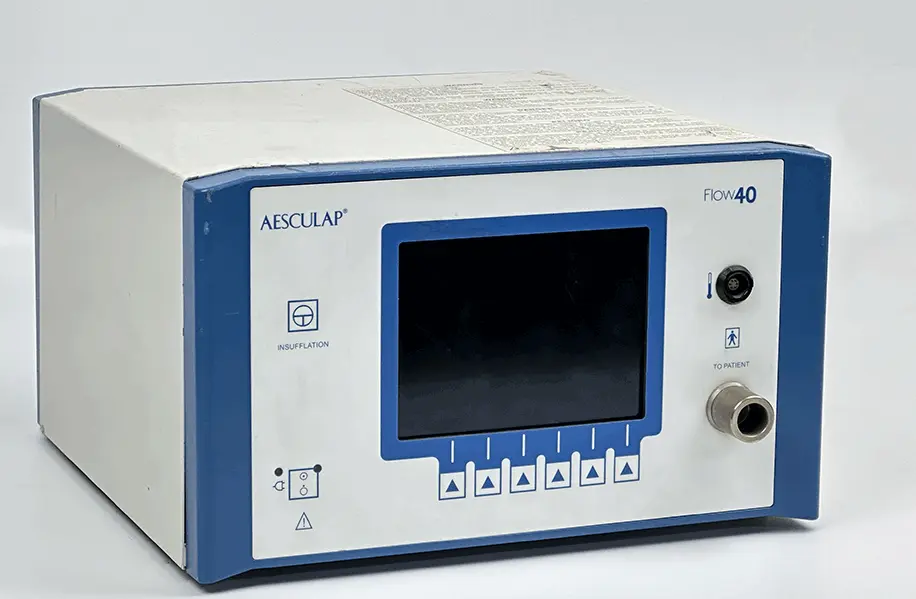

The AESCULAP FLOW40 Endoscopy CO2 Insufflator offers advanced features for optimal performance. With integrated gas preheating, it provides a paediatric flow rate, automatic overpressure release, and intuitive operation. Featuring pressure pre-selection, selectable flow rates, and convenient gas connection options, it ensures precise insufflation during endoscopic procedures. The display shows gas levels, consumption, and error messages, offering an update-enabled interface for enhanced functionality.
Insufflation medium | Pure medical CO2 gas |
Maximum gas flow | 40 I/min. |
Pressure range | 1 - 30 mm Hg |
User menu | 5 languages |
Central Information Display | Yes |
Dimensions (w x h x d) | 305 x 175 x 340 mm |
Weight | 11 kg |
Maximum Power Consumption | 125 VA |
Type of applied part acc. To IEC 60601-1 | BF |
Classification acc. to directive 93/42/EEC | Ⅱa |
With integrated gas preheating
Paediatric flow rate (from 1 I to 5 I in steps of 0.5 I/min)
Automatic overpressure gas release
Intuitive and simple operation
Pressure pre-selection in mmHg
Pre-selectable flow rate
Gas connection to gas cylinder or central supply
Gas cylinder fill level display
Display of gas consumption, in litres
Info line for error messages
Update-enabled through interface
