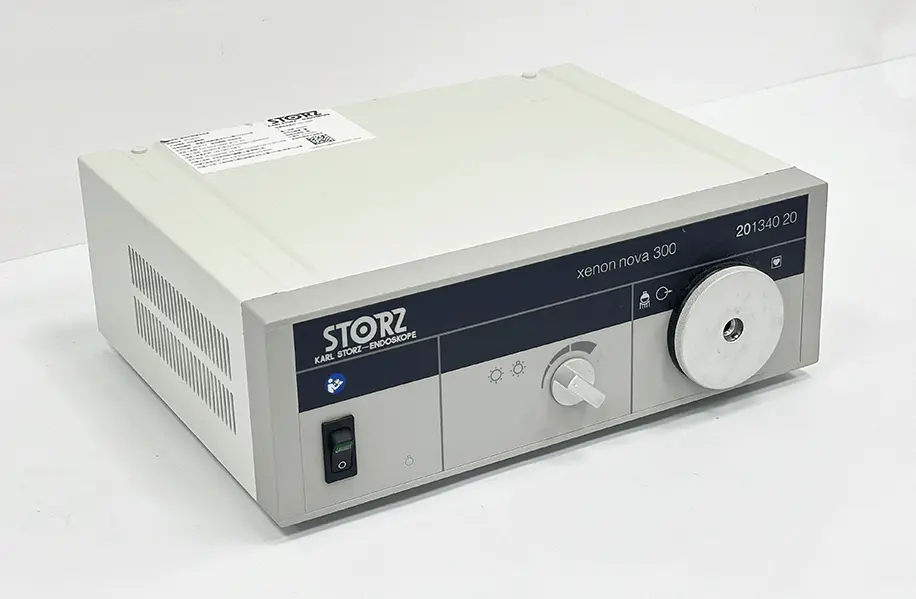

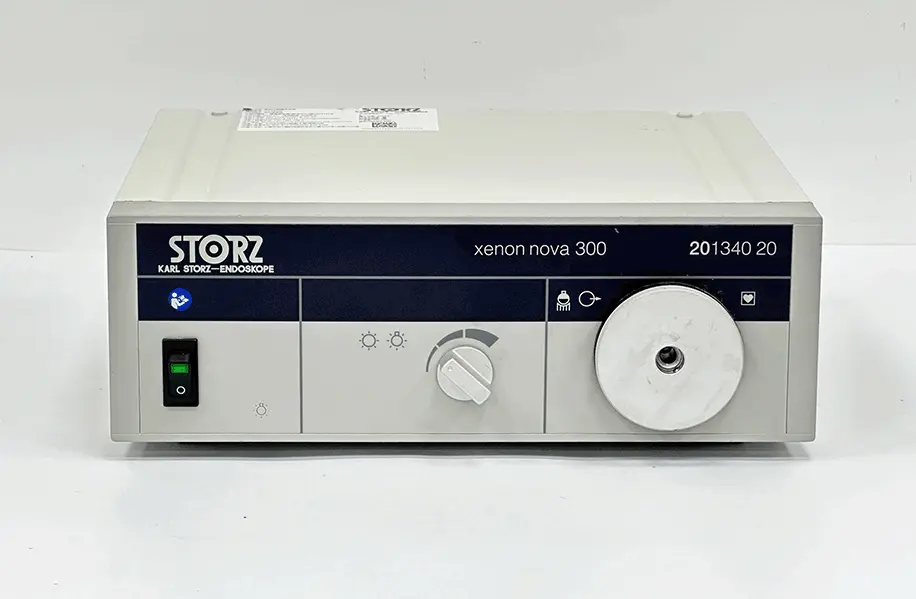

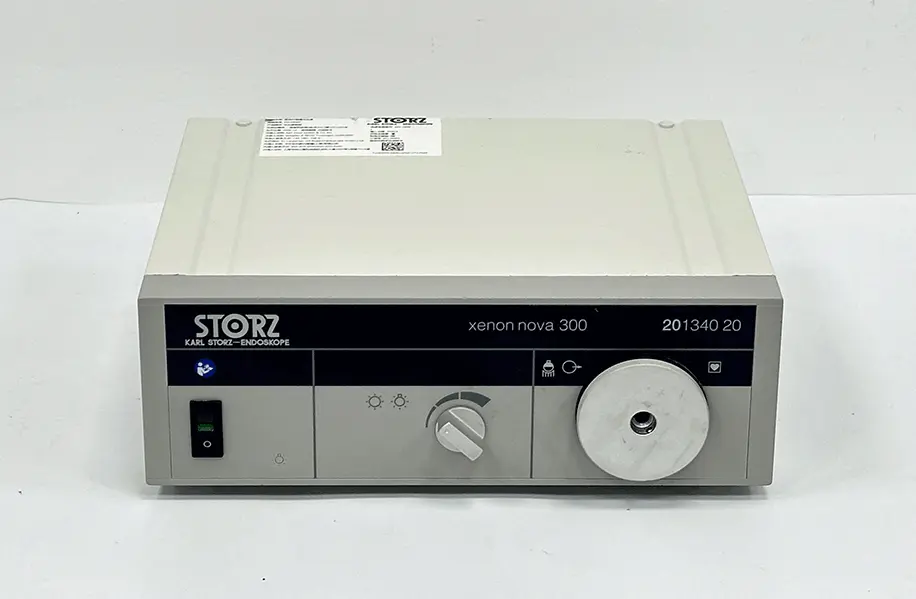

The STORZ 20134020 Endoscopic Light Source is a cutting-edge solution for optimal illumination in medical procedures. With advanced features, it delivers consistent brightness, ensuring clear visualization during endoscopic interventions. Compact and user-friendly, this light source is designed to enhance precision and efficiency in diverse medical settings, providing reliable illumination.
XENON NOVA° 300 201340 20 | |
Supply voltage | 100 VAC ... 125 VAC / 220 VAC ... 240 VAC,±10% |
Power frequency | 50 Hz ... 60 Hz |
Power consumption | 700 VA3 / 450 VA |
Power fuses3 | 2 X T 3.15 AL / 250 V (220 VAC ... 240 VAC) 2 X T 6.3 AL / 250 V (100 VAC ... 125 VAC) |
Power fuses4 | 2 x T 2.5 AL / 250 V (220 VAC ... 240 VAC) 2 x T 5.0 AL / 250 V (100 VAC ... 125 VAC) |
Lamp type | Xenon lamp, 300 W |
Lamp voltage | 14 VDC (nominal) |
amp current | 21 A, 土2 A |
Wattage | 300 W (nominal |
Color temperature | 6000 K (initial) |
Operating temperature | 10°C ... 40 °C (50 F ... 104°F) |
Dimensions (w x h x d) | 305 mm x 101 mm x 240 mm |
Weight | 4.0 kg |
Storage and transport conditions | |
Storage temperature | -10°C ... 60°C (14°F ... 140°F) |
Humidity | 5% ... 95%, rel. humidity, non-condensing |
Atmospheric pressure | 500 hPa ... 1080 hPa |
