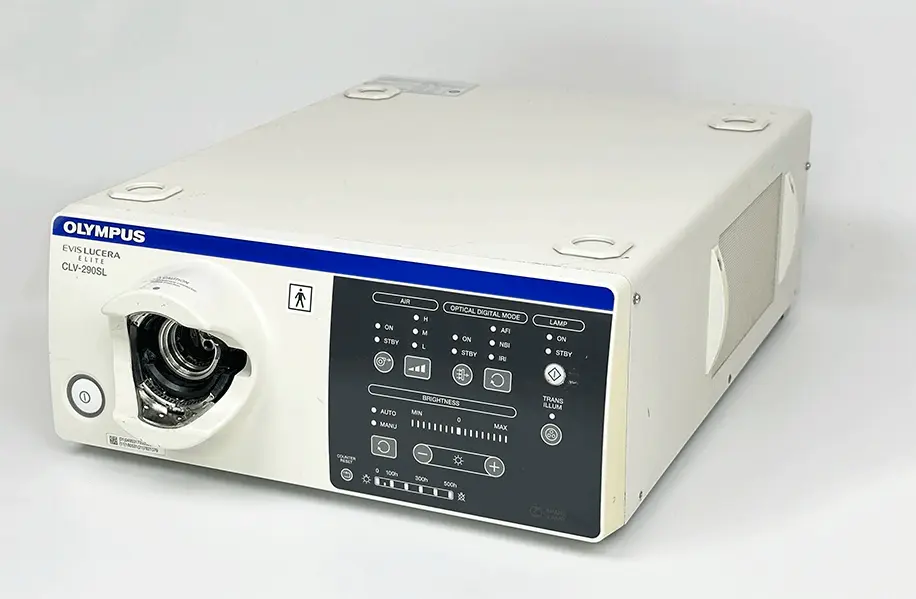

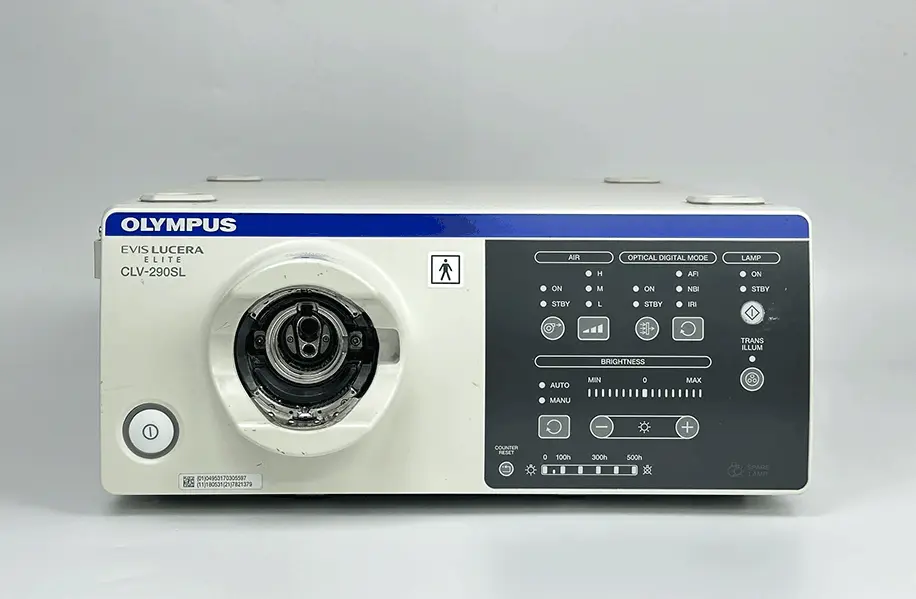

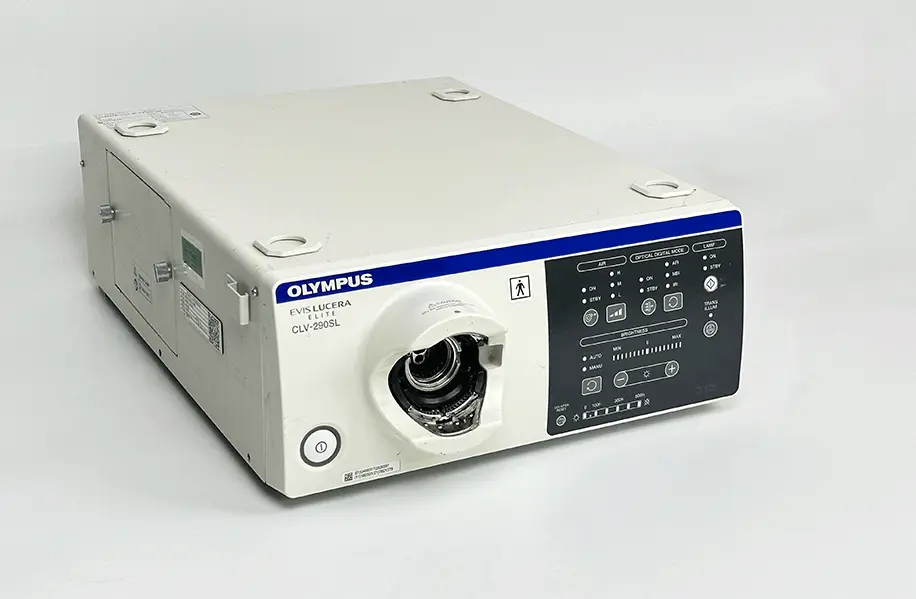

Endoscopic Light Source OLYMPUS CLW-290SL

Rated frequency

50/60 Hz: within ±3 Hz

Rated input

600 VA

Size

Dimensions( W* H * D)

370*150*476 mm (standard)

390*162*551 mm (maximum)

Illumination

Examination lamp

Xenon short-arc lamp (ozone-free) 300 W

Average lamp life

Approximately 500 hours of continuous use. (With intermittent use, the lamp life

may vary slightly.)

Ignition method

Switching regulator

Brightness adjustment

Light-path diaphragm control

Cooling

Forced-air cooling

NBI observation

Available

AFI observation

Available

IRI observation

Available

Emergency lamp

Halogen lamp (within mirror) 12 V, 35 W

Average emergency lamp life

Approximately 500 hours

Automatic brightness adjustment

Automatic brightness adjustment method

Servo-diaphragm method

Automatic exposure

17 steps

Air feeding

Pump

Diaphragm type pump

Pressure switching

Four levels available (OFF, low, medium, high)

Water feeding

Method

Feeds water by pressurizing the detachable water container with air.

Indicators on front panel

Emergency lamp

indicates absence of emergency lamp, disconnection, and use of emergency lamp.

NBI

When the NBI observation is enabled, the NBI indicator lights up.

AFI

When the AFI observation is enabled, the AFI indicator lights up.

IRI

When the IBI observation is enabled

The IRI indicator lights up.

Setting memory

Settings (except filter setting) are stored even when the light source is off.

Classification

(medical electrical equipment)

Type of protection against electric shock

Class I

Degree of protection against electric

shock of applied part

TYPE BF applied part

NOTE: As classification types are not marked, the applied part is the TYPE BF applied part.

Degree of protection against explosion

This instrument should be kept away from flammable gases.
