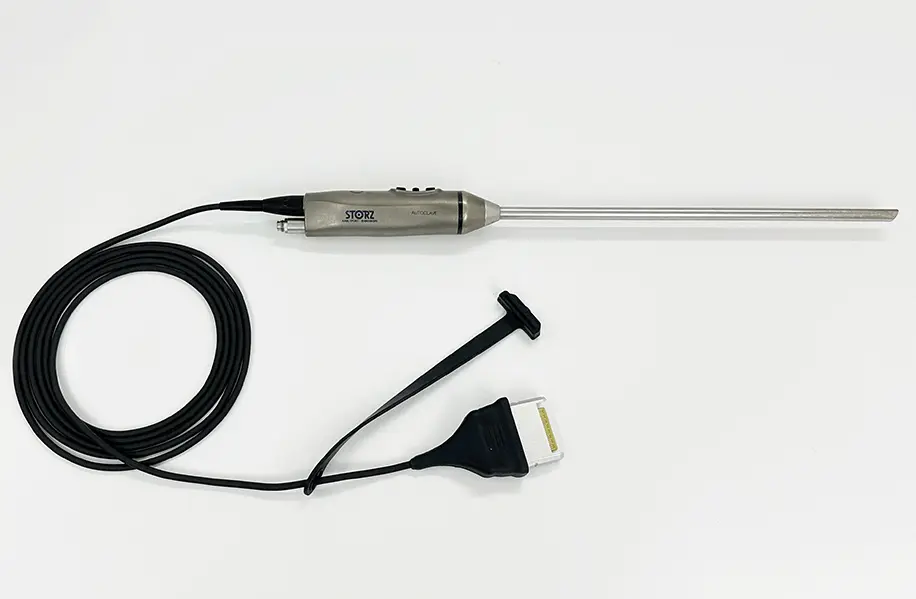

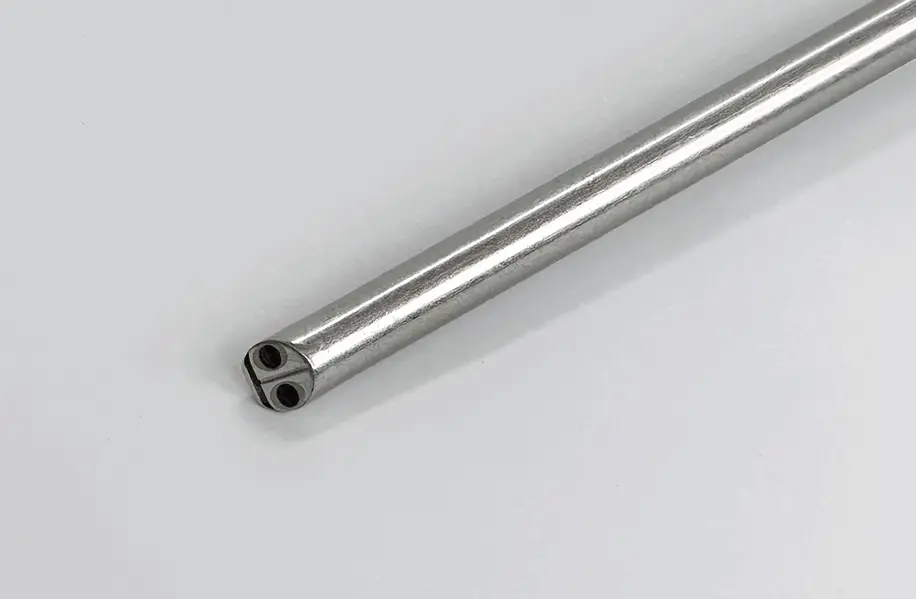

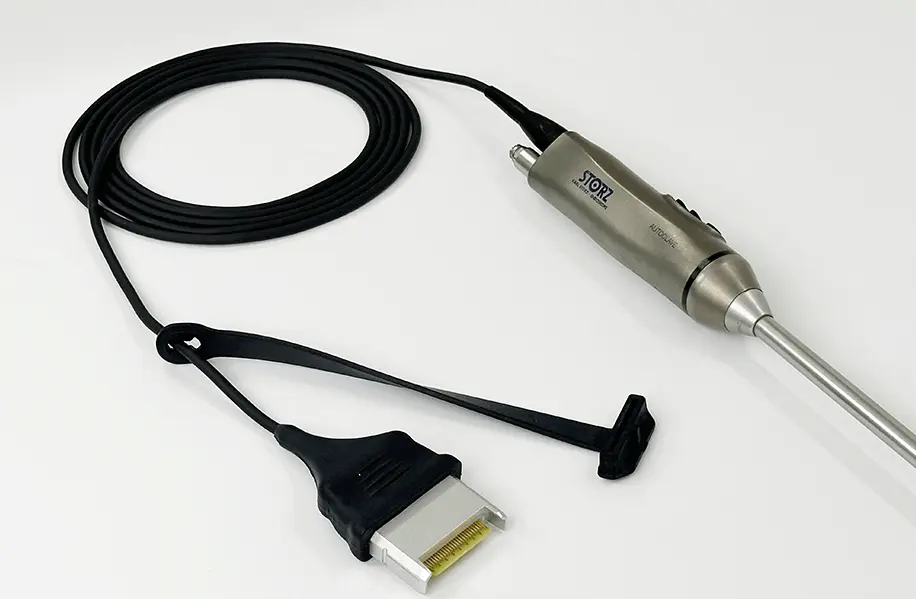

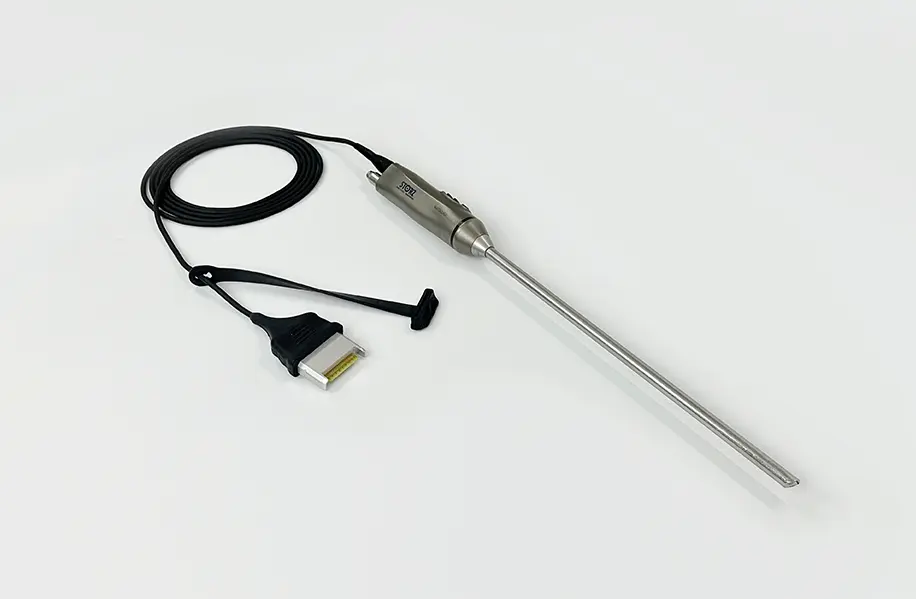

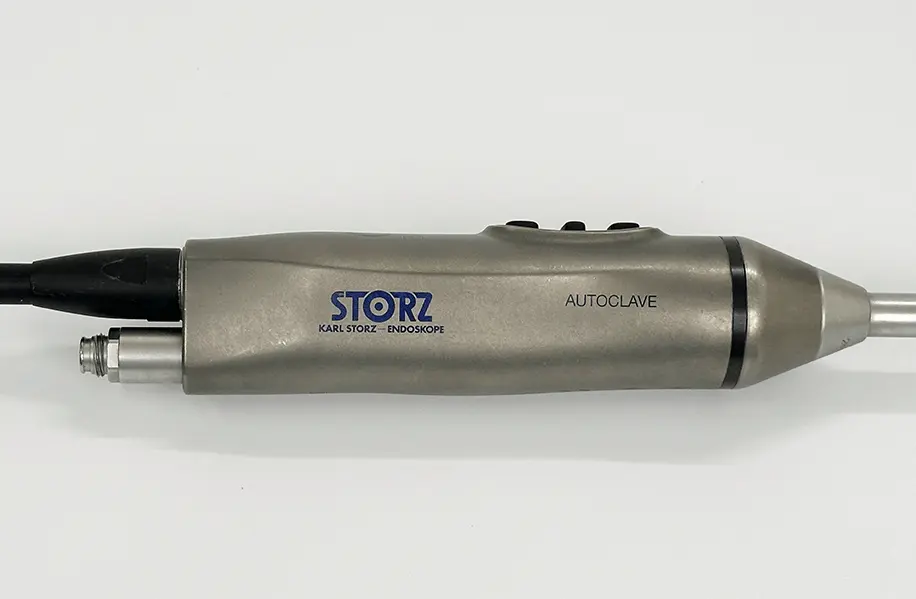

STORZ 3D Videoendoscope 26605BA is a video endoscope equipped with a IMAGE1 S™ 3D system, providing three-dimensional visual effects. IMAGE1 S™ 3D provides surgeons with excellent depth perception. This 3D stereoscopic system is particularly helpful when performing activities that require good spatial vision. Thanks to the modular system design, existing 2D systems of videoendoscope can be upgraded to 3D.
The videoendoscope available with 0° and 30° directions of view
Easy toggle from 3D to 2D
Easy integration into the IMAGE1 S™ platform
Three visualization technologies for easy tissue differentiation in 2D and 3D
CLARA: Homogeneous illumination
Image sensor resolution | FULL HD |
Direction of view | 30° |
Outer diameter | 10.3 mm |
Working length | 320 mm |
Fluorescence imaging (NIR/ICG) | no |
Connection | D3-Line |
Weight | 420 g |
Cable length | 300 cm |
Cable routing | straight |
Frame rate | 50/60 Hz |
Image sensor type | CMOS |
Number of image sensors | 2 |
Zoom function | yes, digital |
Camera head buttons | 3 buttons, 2 freely programmable |
Autoclavable | yes |
H2O2 (hydrogen peroxide) | yes |
S-Technologies | CLARA; CHROMA; SPECTRA A + B |
degree of protection in conjunction with the IMAGE1 S™ camera control unit | CF defib |
Scanning method | progressive scan |
Brand | TIPCAM®1 |
Regular maintenance can ensure that the performance of the videoendoscope camera system is maintained at the best state, ensuring the stability and reliability of image quality and light source brightness.
In addition to the video endoscope price advantage, SIHANMED has formulated a maintenance plan for the STORZ Rigid videoendoscope camera system for you, with a maintenance cycle of 6 months.
We generate a maintenance report for the STORZ Rigid videoendoscope camera system for you, including maintenance overview, maintenance problem summary, maintenance summary, maintenance pictures, etc.
▶ Follow STORZ's cleaning and disinfection guidelines to ensure the hygiene and performance of the device.
▶ Always use special lens cleaning paper to clean the surface of the camera lens, never use alcohol.
▶ Always use an eraser to clean the gold fingers of the camera.
▶ Never use alcohol to clean the STORZ videoendoscope display.
▶ During the cleaning process, avoid violent bumps or twisting of accessories to prevent damage.
▶ Always cover the camera dust cover.
