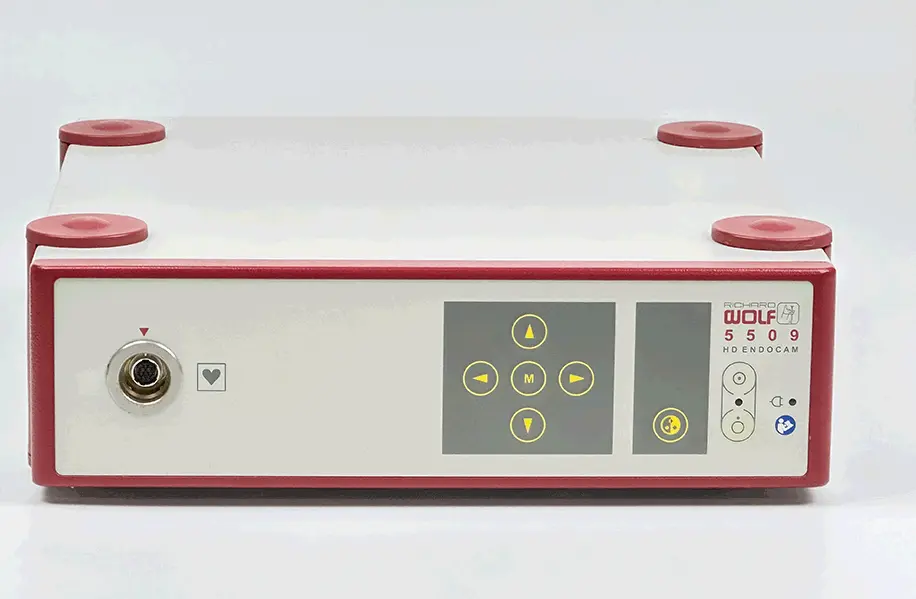

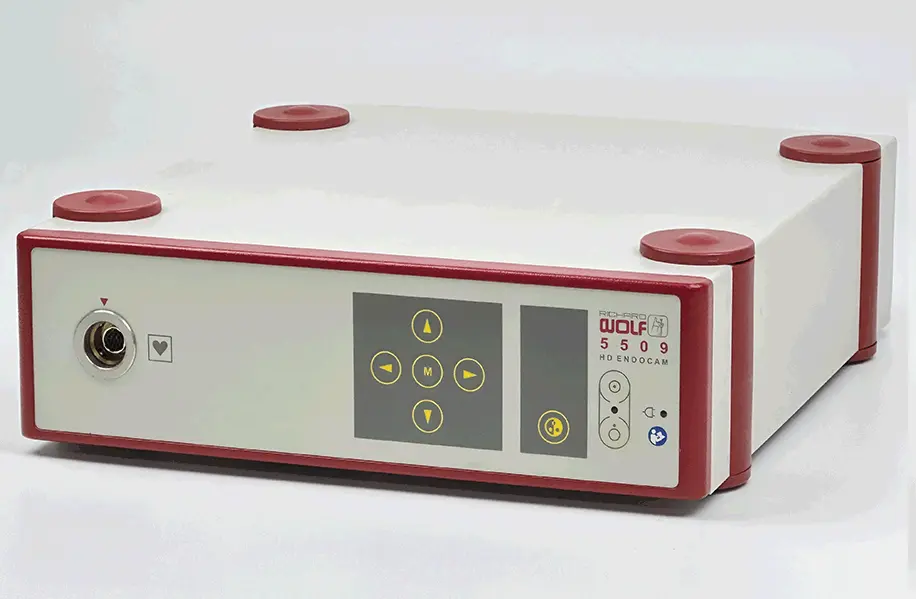

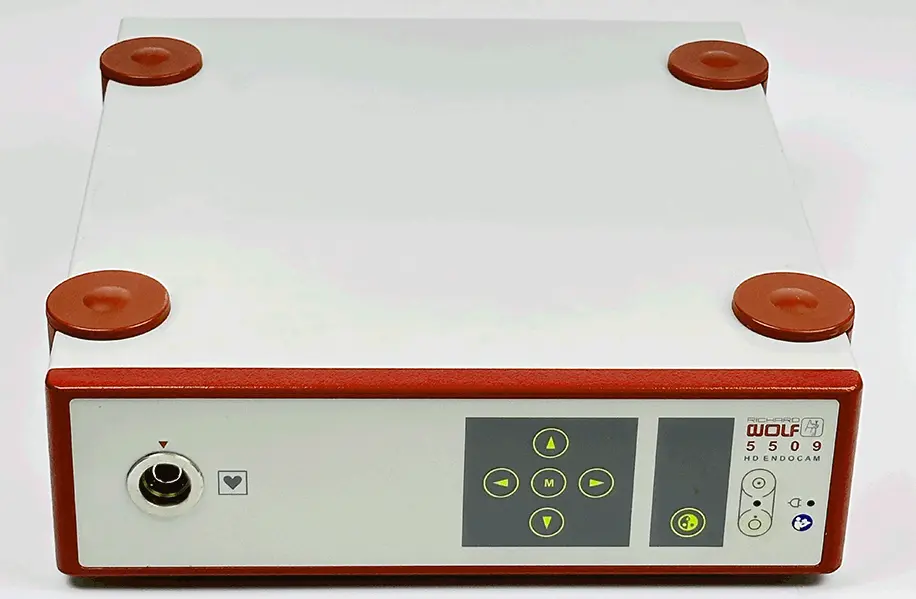

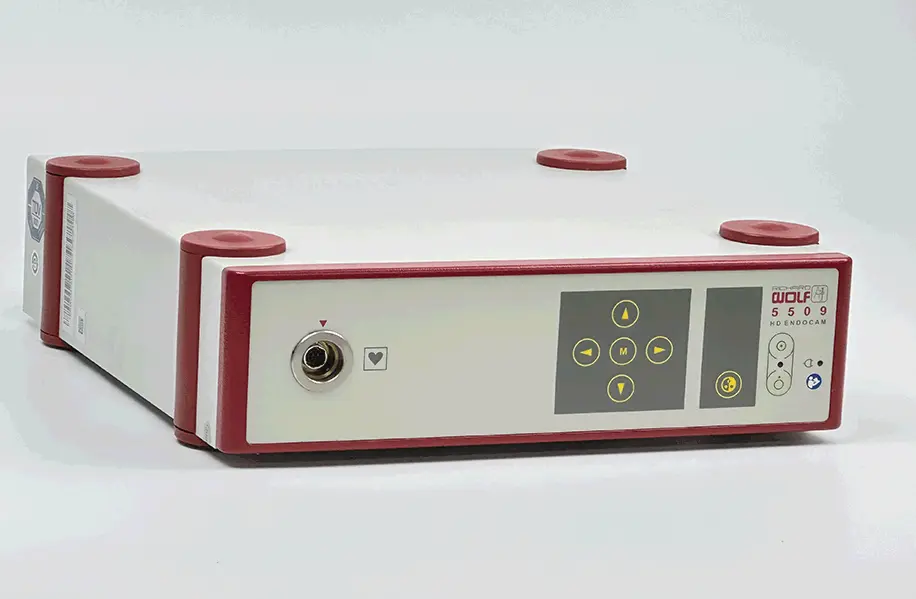

The Wolf 5509 Endoscopy Video Processor redefines medical imaging with its fully digital design, ensuring seamless transmission from camera to host. It accommodates two-chip or single-chip cameras for diverse applications, featuring dynamic aperture, automatic shutter control, and 5:4 Medical HD format. Equipped with versatile outputs, preset settings, user-customizable options, 2x digital magnification, and advanced safety features, it guarantees precision in surgical visuals. With a compact design and sterilization options, the Wolf 5509 is an exemplary choice for high-performance endoscopic imaging.
Fully digital design, all digital transmission from camera to host.
Two-chip or single-chip cameras can be connected to suit different applications.
Full digital image processing, including dynamic aperture and automatic shutter control.
5:4 Medical HD format for maximum coverage.
Standard with DV (IEEE-1394) output for easy connection to digital video recorders and workstations.
The standard outputs include 2 multi-channel videos, 2 S-videos, one optimized DVI and one HD-RGB output, which are more suitable for connecting to LCD screens.
7 preset settings suitable for different surgical needs.
10 user free settings to suit individual special needs.
2x digital magnification.
Doubtful image function.
Color can be adjusted manually.
The electrical safety of the host is BF level.
Electromagnetic compatibility is IEC-601-1-2 or EN-60601-1-2.
Medical device guideline 93/94/EEC is Level 1.
Signal-to-noise ratio is greater than 62dB.
The host's liquid penetration resistance index is IP20, and the camera's liquid penetration resistance index is IPX7.
The camera is very light, with a diameter of 38mm, a length of 91mm and a weight of only 85g.
The single-chip camera can be sterilized by high temperature and pressure, and the three-chip camera can be sterilized by gas, STERIS and STERRAD.
Camera sensitivity is 3Lux
