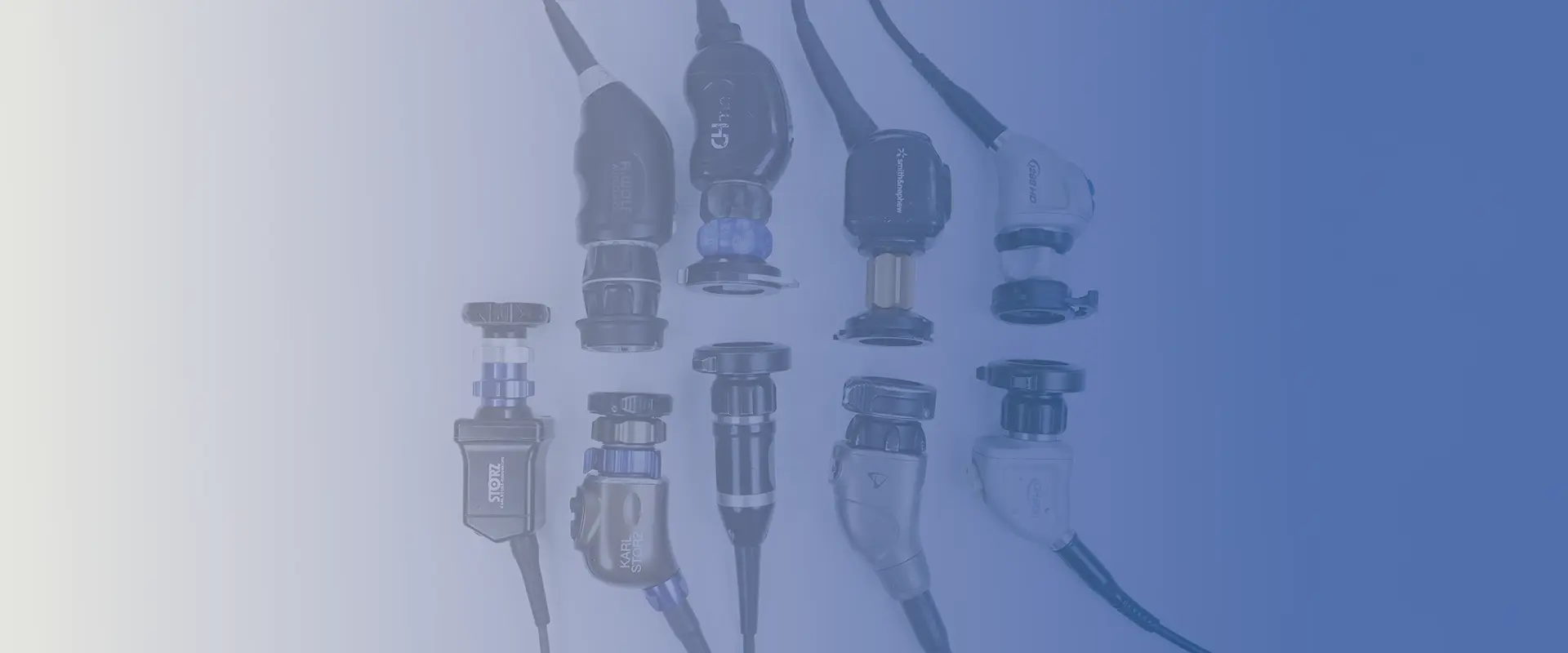

Surgical Endoscopic Camera Repair & Replacement & Maintenance Service Company



A surgical camera is a device that allows surgeons to see the inside of a patient's body during endoscopic, laparoscopic, or other types of minimally invasive surgeries. Therefore surgical camera repair services are essential for the medical industry.

The surgical camera is another pair of eyes for the doctor. We have experienced engineers and a professional surgical camera repair system department responsible for the endoscopic camera repair to ensure that the surgical camera can produce high-definition, clear, and stable images of the surgical site.

We can perform endoscopic camera repair services for STORZ, STRYKER, R.WOLF, OLYMPUS, Smith & Nephew, Conmed, Aesculap and other brands.

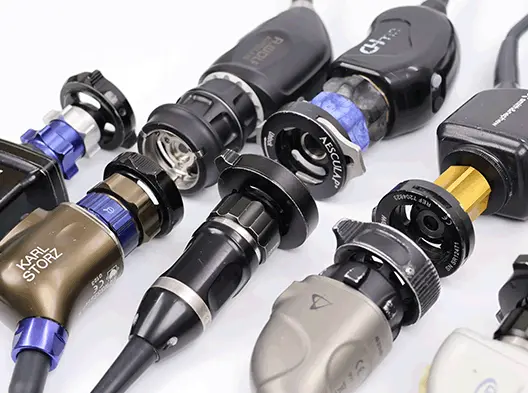

Types of Surgical Camera Repair and Coupler Repair

Endoscope Products

Endoscope Repair Services

Endoscope Parts



Storz

Repair Service For STORZ H3 22220053 Camera Head Repair Service For STORZ H3-Z 22220055 Camera Head Repair Service For STORZ H3-Z TH100 Camera Head Repair Service For STORZ H3-ZI TH101 Camera Head Repair Service For STORZ H3-Z FI TH102 Camera Head Repair Service For STORZ H3-P TH103 Camera Head Repair Service For STORZ H3-ZA TH104 Camera Head Repair Service For STORZ S3 22220130 Camera Head Repair Service For STORZ Telecam 20212030 Camera Head Repair Service For STORZ Tricam 20221130 Camera Head


Olympus

Repair Service For OTV-S4 Camera Head Repair Service For OTV-S5 R Camera Head Repair Service For OTV-S6 Camera Head Repair Service For OTV-S7 Camera Head Repair Service For OTV-S7Pro Camera Head Repair Service For OTV-SX Camera Head Repair Service For OTV-SX2 Camera Head Repair Service For OTV-SC Camera Head Repair Service For CH-S190 Camera Head Repair Service For OTV-SP1 Camera Head


Stryker

Repair Service For STRYKER 1488HD Camera Head Repair Service For STRYKER 1288HD Camera Head Repair Service For STRYKER 1188HD Camera Head Repair Service For STRYKER 1088HD Camera Head Repair Service For STRYKER 988 Camera Head


Wolf

Repair Service For Wolf 5525 Camera Head Repair Service For Wolf 5506 Camera Head Repair Service For Wolf 5507 Camera Head Repair Service For Wolf 5509 Camera Head Repair Service For Wolf 5512 Camera Head Repair Service For Wolf 5514 Camera Head Repair Service For Wolf 5516 Camera Head Repair Service For Wolf 5550 Camera Head


Smith & Nephew

Repair Service For Smith & Nephew 560H Camera Head Repair Service For Smith & Nephew 460P Camera Head Repair Service For Smith & Nephew ED-3 Camera Head

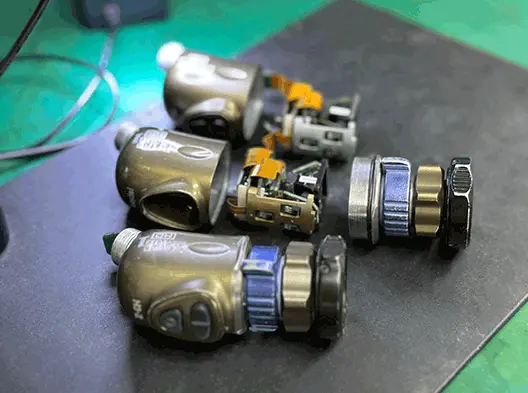

SIHANMED Surgical Camera Repair & Coupler Repair Display

We offer a wide range of surgical cameras & couplers repair services, including:

OEM Cable Replacement
Cable Repair
CCD Repair
CCD replacement
Prism repair
Coupler repair
OEM coupler replacement

Except endoscopic camera repair, we can provide new OEM cable replacement with a good price and fast delivery, which is more cost-effective than repairing cables.

Lab View of Surgical Camera Repair and Coupler Repair

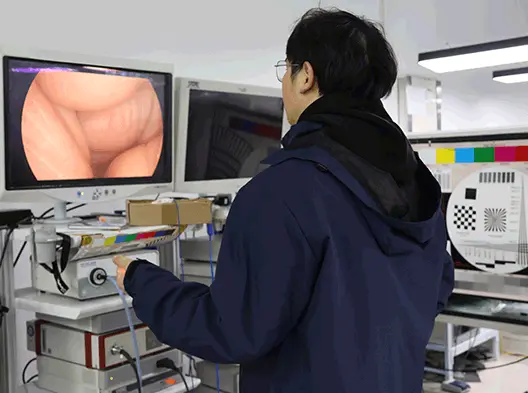

Testing Camera Head
Type of Camera Head

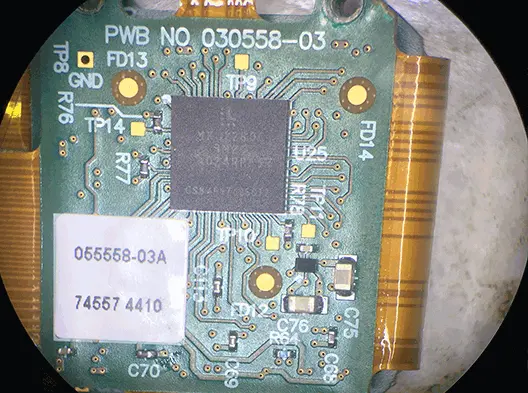

Repairing CCD

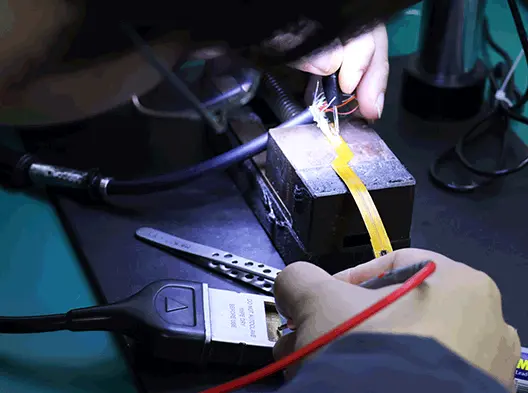

Repairing Camera Head Cables

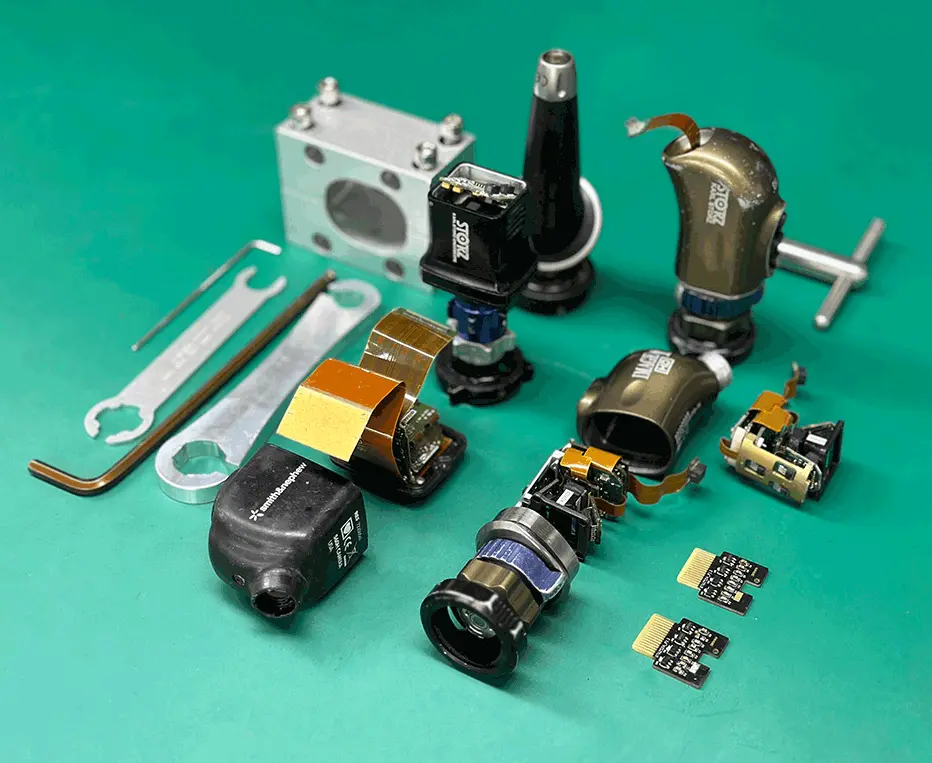

Tool Kit for Repairing Cameras

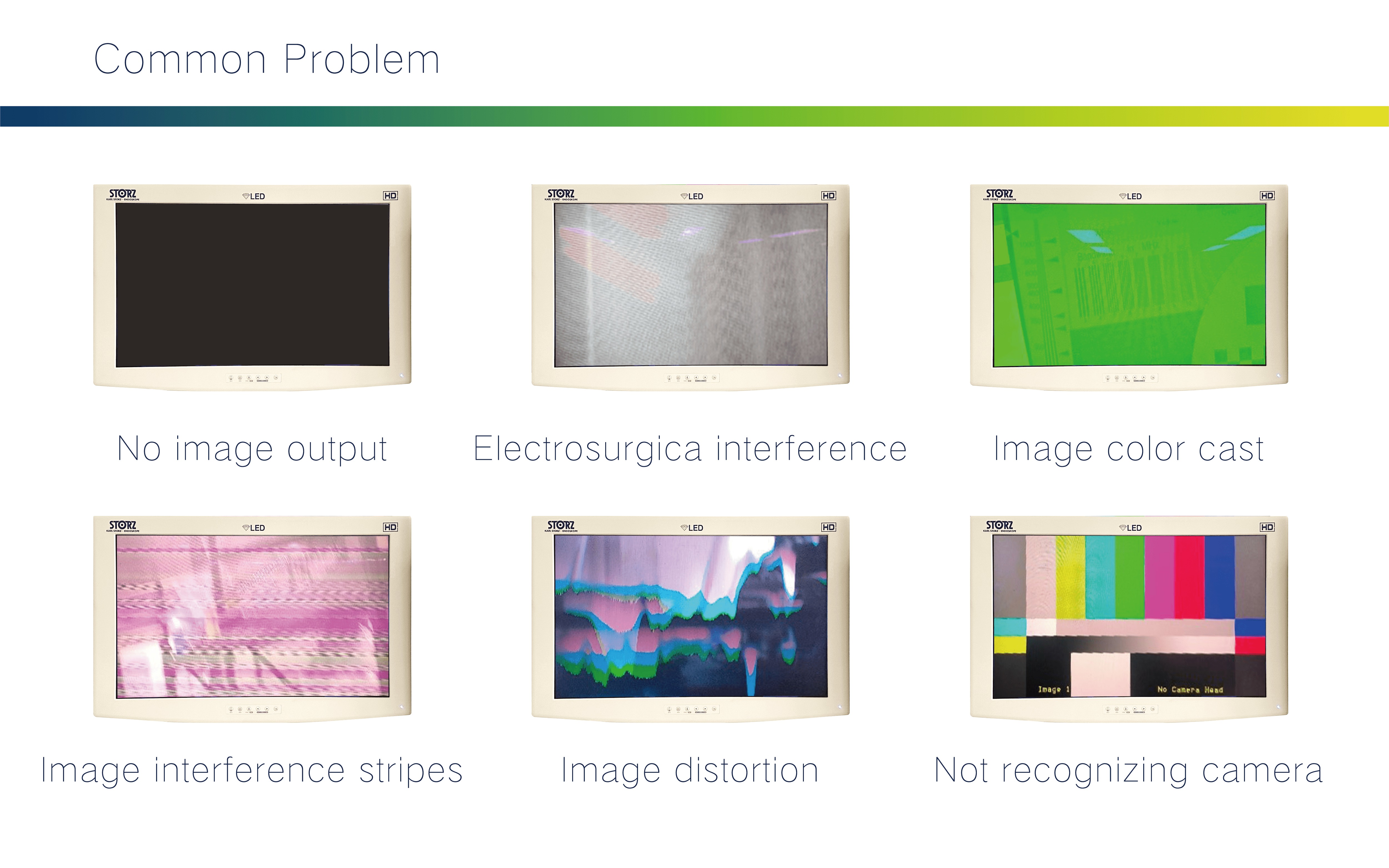

Common Surgical Camera Head Problems



The problems, which may happen, include but are not limited to:

Image color cast
Image interference stripes
Image distortion
Not recognizing camera
Electrosurgical interference
No image output
Poor cable contact
Image colour cast

endoscopic camera repair from sihanmed

The causes of these problems include but are not limited to:

1 Improper or incorrect disinfection
If the camera is not properly disinfected, the image will become blurry. Residues on other parts and connectors may cause further damage. The camera is recommended to be sterilized with ethylene oxide gas, not with high temperature and pressure, and try not to use immersion method for disinfection.

2 Physical impact or drop
The camera should always be handled gently. Any rough or careless operation may cause the camera to fall or hit a hard surface, and may cause serious damage. Inside the camera, the CCD is mounted on the prism group. If any of these components are disturbed, it may cause unclear images, ghosting, and other abnormal images.
3 Connection cable damage/aging
The connection cable is equipped with several thin and fragile cables. Frequent or rough use may aggravate the internal wear of the cable, especially the connection between the cable and the sheath. The internal cable may have open circuit, high impedance, poor contact, shielding wire disconnected and ineffective, etc. Improper disinfection may also cause the cable sheath to crack or break. The cable is very common.
4 Console plug damage
The plug pin may damage the gold finger due to improper insertion, and may cause image flicker, color cast and other faults.
5 Focusing prism blur
If the focusing ring cannot adjust the focal length, jam or make abnormal noise, it may be a mechanical failure. If the image is blurry after the camera is focused, it may be that the focusing prism surface is dirty, foggy or damaged.
6 Optical chuck damage
Doctors often need to change the endoscope according to the surgical situation when using the same camera. Frequent use will increase the failure rate of the chuck. It may cause the chuck to fail or corrode by water, or even drop and damage parts.

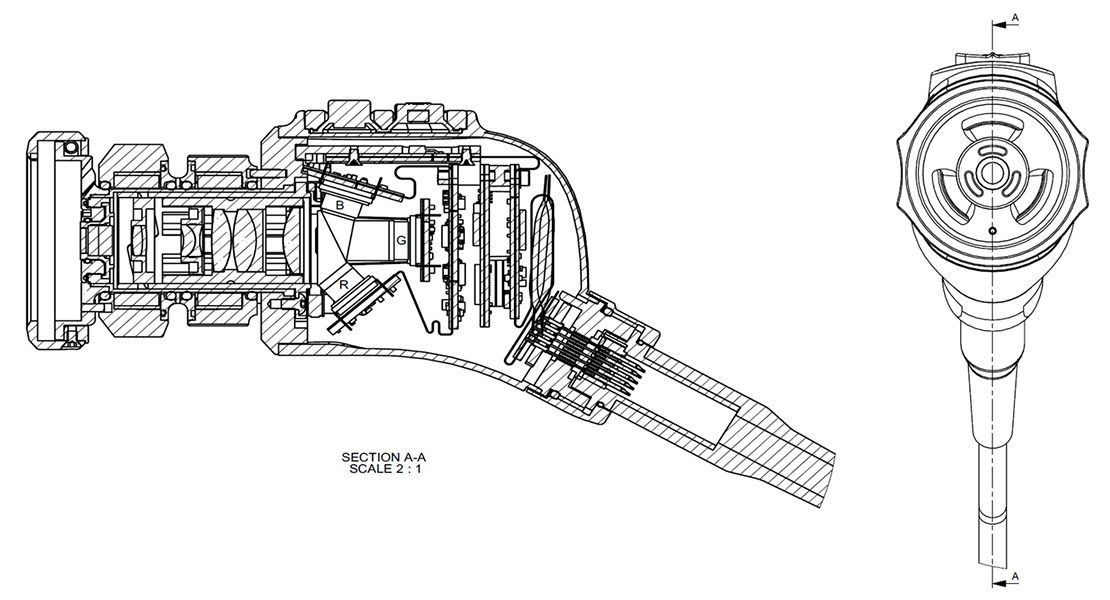

structural sketch about medical endoscope camera storz camera head

Why SIHANMED Can Complete Surgical Camera Repair Perfectly?

Professional technology and experience accumulation:

SIHANMED has many years of R&D and production experience, and has accumulated rich technical knowledge and endoscopic camera repair experience. SIHANMED's technical team consists of experienced engineers and technicians who can quickly diagnose and solve various complex surgical camera repair problems. SIHANMED conducts continuous endoscopy device technical training and updates to ensure that maintenance personnel master the latest technology and maintenance methods.

High-quality original accessories:

In surgical camera repair, SIHANMED is able to provide high-quality original accessories. The use of original accessories can not only ensure the performance and reliability of the equipment, but also extend the service life of the equipment. In contrast, the use of non-original accessories may cause equipment performance degradation and even cause new failures.
